Movable lower bracket
SG020A has a lower bracket that can move vertically to accommodate a baseboard. Review the required position, travel and supporting surfaces on the selected sample.
YH-PG-SG020A / B2B ENQUIRY
SG020A Retractable Mesh Gate with Movable Lower Bracket
SG020A combines aluminium-alloy parts, ABS components and PVC mesh in a retractable gate. Its movable lower bracket helps position the fixings around a baseboard. Review the bracket travel, operating sequence and usable opening on the sample, then confirm the hardware kit and retail-pack requirements.
Manufacturer modelSG020A
MaterialAluminium alloy + PVC mesh + ABS
Catalogue overall specification140 x 86.4 x 8.5 cm
Tell us your preferred style or size, quantity, target market and customisation requirements.
01 / Product overview
A clear starting point for your range
SG020A combines aluminium-alloy parts, ABS components and PVC mesh in a retractable gate. Its movable lower bracket helps position the fixings around a baseboard. Review the bracket travel, operating sequence and usable opening on the sample, then confirm the hardware kit and retail-pack requirements.
- Movable lower bracket for baseboard clearance
- Aluminium alloy, PVC mesh and ABS
- Catalogue net weight: 2.15 kg
02 / Design and construction
Look closer at this selection

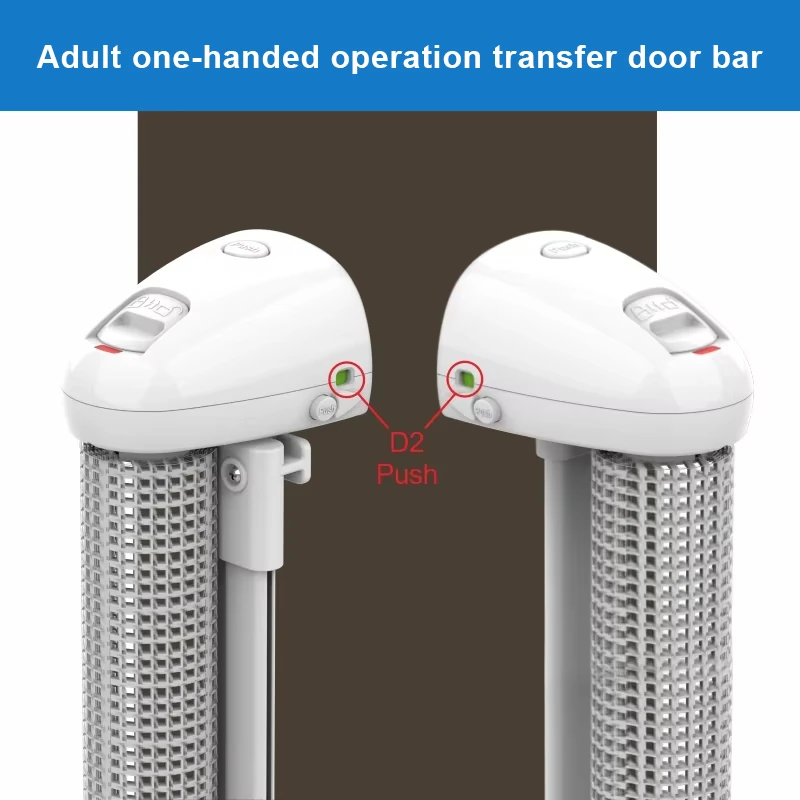

Control head and mesh
The supplier detail image shows the SG020A control head, indicators and mesh assembly. Use the sample to confirm the controls, locking sequence and supplied configuration.

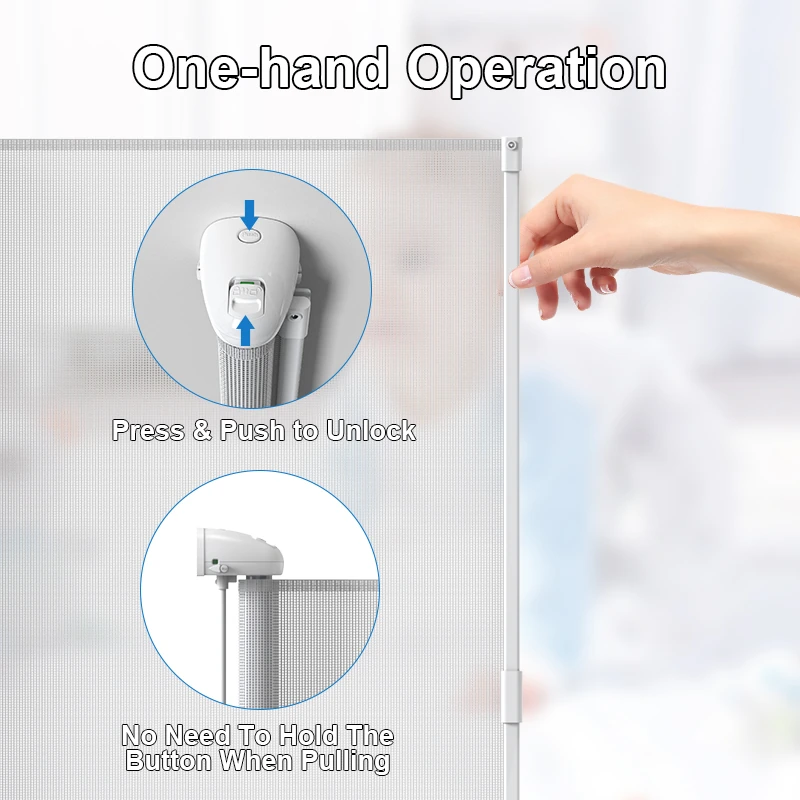

Operation and mounting
The corresponding operating detail shows the pull edge and mounting arrangement. Review reach, alignment and bracket engagement in the intended installation before approving the instruction sheet.
03 / Model specification
Plan the product and the pack
| Manufacturer model | SG020A |
|---|---|
| Material | Aluminium alloy + PVC mesh + ABS |
| Catalogue overall specification | 140 x 86.4 x 8.5 cm |
| Usable installation opening | Confirm against the approved sample; catalogue size is not opening width |
| Lower bracket | Moves vertically to accommodate a baseboard |
| Catalogue net weight | 2.15 kg |
| Listed box | 12.5 x 10 x 90 cm |
| Outer carton | 32 x 26.5 x 92 cm |
| Units per outer carton | 6 |
04 / From brief to shipment
Develop, approve and prepare the order
- Measure the opening and mounting surfacesMeasure the opening, mounting surfaces and baseboard height and projection. Identify the required lower-bracket position, then confirm the usable opening for that mounting layout.
- Review the model sampleReview SG020A bracket travel, control head, mesh retraction, pull edge and locking sequence on the selected sample. Confirm all supplied components against the model drawing.
- Confirm the parts and packAgree the counted mounting kit, operating instructions and retail artwork. Check the listed unit box and six-unit outer carton against the approved sample and order.
- Agree batch checks and deliveryBefore dispatch, review the agreed appearance, dimensions, operation, hardware count and packing checks. Confirm carton data, shipping marks, delivery terms and transport documents with the supplier.
05 / More in this range
Compare other selections
SG001SG001 Adjustable Bar Gate
Catalogue doorway range: 57-88 cm · Powder-coated iron with ABS components
SG008SG008 Retractable PVC Mesh Gate
Retractable PVC mesh with ABS components · Catalogue colours: white, black and grey
SG019SG019 Adjustable Mesh-Panel Pet Gate
Catalogue door-width range: 80-130 cm · Powder-coated iron, ABS and PVC mesh
